SARIX ADVANCED SAMPLE
Micro EDM blind hole drilling
with perfect flat bottom hole control
● high depth precision of +/- 0.01 on 15 mm
● cylindricity max 0.005 mm
● perfect straightness

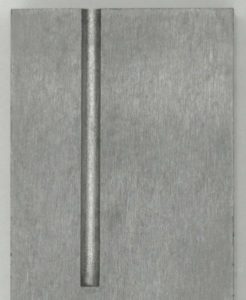

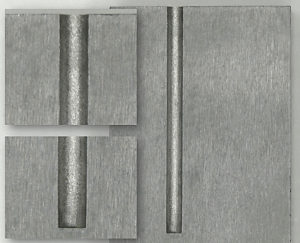

Blind hole diameter 1.0 mm on 15 mm
| Material | solid carbide WC 6% Co |
| Electrode size | 0.95 mm |
| Hole diameter | 1.005 mm |
| Tolerance | 0/+ 0.01 mm |
| Surface finishing | Ra 0.3 microns |
| Hole deviation | 0.005 mm |
Application materials
Carbide – Titanium Alloy – Ceramics – Stainless steel
Machine configuration
All SARIX machines with Pulsar generator
SARIX SAMPLE 11-2023
