SARIX ADVANCED SAMPLE
Micro EDM Deep Hole drilling
wire start hole
diameter 0.10 on 15 mm
● maximum hole diameter 0.105 on 15 mm
● perfect straightness

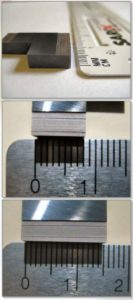

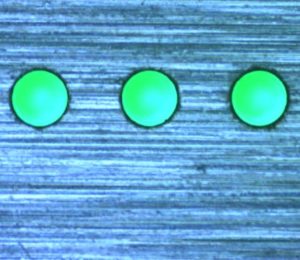

Effective hole 0.10 mm (100 microns)
| Material | solid carbide WC |
| Electrode size | 0.10 mm |
| Hole diameter | 0.105 mm |
| Tolerance | 0/+ 0.005 mm |
| Surface finishing | Ra 0.25 microns |
| Hole deviation | 0.005-0.010 mm |
WC
Device SX-MDH (SARIX patented)
SARIX SAMPLE 10-2023
