SARIX ADVANCED SAMPLE
Micro EDM DIE SINKING
for creating complex shapes and features with tight tolerance on hard material
● copper electrode created by Micro EDM Milling
● size precision of +/- 0.002 mm
● high surface finishing between Ra 0.05-0.10 microns

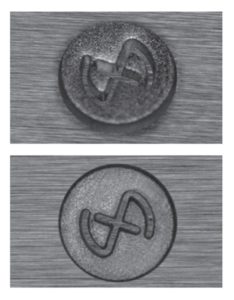

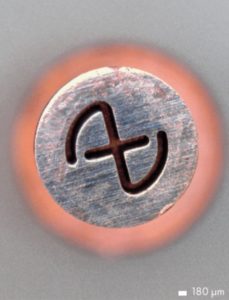

Micro Die Sinking sample
| Work piece Material | hardened steel 55 Hrc |
| Electrode size | 1.20 mm |
| Profile width | 0.20 mm |
| Tolerance width | 0/+ 0.005 mm |
| Wall Surface finishing | max Ra 0.1 microns |
| Depth control | 0.005 mm |
Applications
Microelectronics and Medical device for small features in components and microdevices.
Application materials
Tool stamping steel – Stainless steel
Machine configuration
SX80 and SX100 machines with Pulsar generator
SARIX SAMPLE 12-2023
