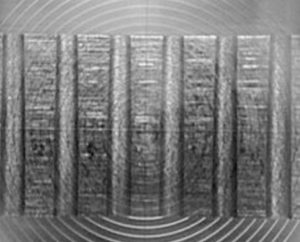

SARIX ADVANCED SAMPLE
High Speed Micro EDM Drilling
without material deformation
● no burrs and no cracks
● perfect straightness
hole diameter range 0.1 mm to 3.0 mm
| Electrode size | from 0.08 to 3.0 mm |
| Hole cylindricity | 0.001 mm * |
| Tolerance | down to 0.002 mm * |
| Surface finishing | down to Ra 0.10 microns * |
| Hole deviation | down to 0.005 mm * |
| * depending on ole size & hole depth |
Application materials
Carbide – Titanium Alloy – Ceramics – Stainless steel
Machine configuration
All SARIX machines with MPS/Pulsar generator
SARIX SAMPLE 03-2024
